Description

Reality 5 On-Air Graphics Bundle

Reality 5 Engine and Reality Hub Control Software

This bundle includes a single-channel, real-time graphics engine designed for broadcast graphics workflows, such as lower-thirds, full screen visuals, and video wall graphics in live productions.

This bundle includes Reality Hub LE as the control software. Reality Hub is a web-based control platform with template-based graphics playout. It can easily get external data from web services, databases and .csv files.

Reality 5 On-Air Graphics Engine and Reality Hub Control Software bundle offers a focused real-time graphics workflow. Perfect for standalone broadcast graphics operations, such as OB Trucks, MCR and video wall graphics.

This bundle is installed to your production engine hardware. To design or modify your graphics templates, you need to either purchase the Editor GUI option (installed on the same production engine hardware) or a separate Reality 5 Designer Bundle (installed on a separate design workstation).

Key Capabilities

• Real-time 2D/3D graphics rendering in HD/ UHD signals and unlimited custom resolutions (the resolutions may be limited with the available hardware) for video walls in broadcast environments.
• HD 1080i/p, UHD SDI fill/key output, using AJA Corvid or Blackmagic Design DeckLink video I/O hardware. (check supported hardware models)
• Includes Unreal Render Node single-channel render output license for Motion Design graphics templates.
• Comes with NODOS, the real-time node-based compositing, video I/O and logic engine.
• Reality Hub can be controlled via Chrome or Edge browser through a modern laptop or computer for template-based graphics playout. No installation required. Just a network connection to your production hardware is needed.
• Reality Hub supports scripting to ingest data from web services, databases and xlsx & .csv files directly to your graphics templates.
• If you purchase the Editor GUI option, you can design or modify graphics templates during off-air times.

Lower-Third
Key	Fill	Final Image

Use Case Highlights

This bundle allows single-operator broadcast graphics workflows on a standalone system.

• Single-channel on-air graphics production.
• Custom resolution video wall graphics over SDI/HDMI/DisplayPort.
• Ideal for OB Truck operations.
• Suitable for MCR operations.
• Game Shows.

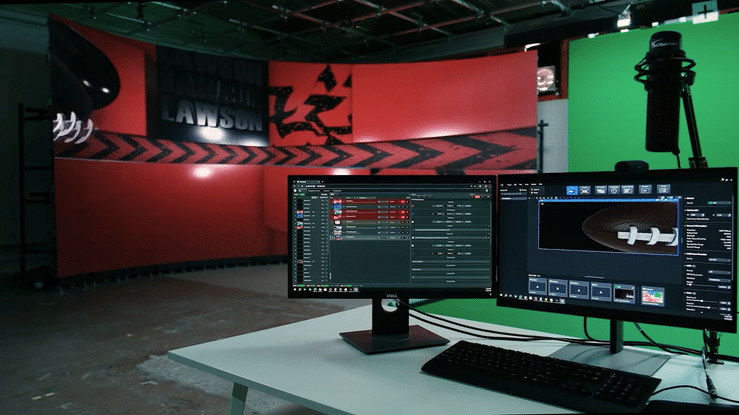

Video Wall Graphics
Clean Feed	Final Image

System Requirements

• Visit the system requirement on https://docs.zerodensity.io page.

! Information

• This bundle includes Reality 5 Engine + Reality Hub LE licenses.
• Only one render output channel is supported.
• Visualize virtual studio functionalities on Reality 5, such as Reality Camera, Reality Keyer, video projection, and tracking on SDI output with a watermark.
• Reality Hub LE web-service must run on the same system as Reality 5.
• Unlimited Ticket support,  accessible from the Zero Density Shop Dashboard.
• Make sure you have access to the Reality 5 Designer Bundle or purchase the Editor GUI option.
• Reality Hub LE  includes licenses for Launcher, Nodegraph, Lino Playout and Template Builder.


Custom Resolution Video Wall: 2880×1152
